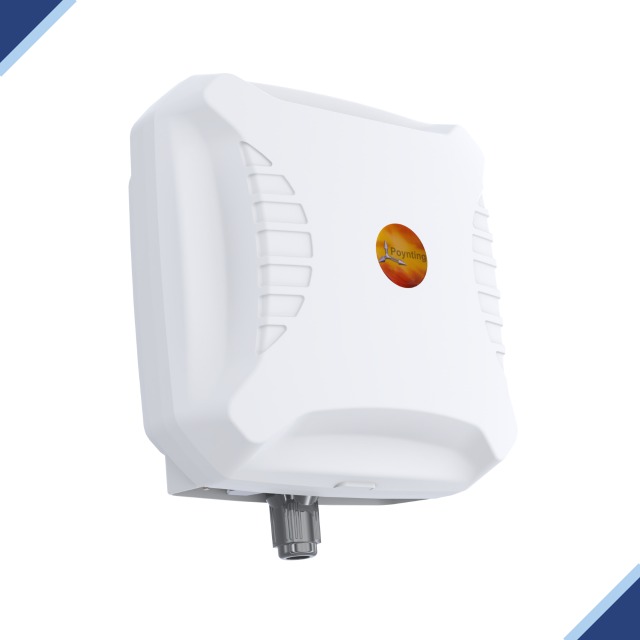

Poynting EPNT-2: 5G/4G 4x4 MIMO Outdoor Unidirectional Panel Antenna & Waterproof Router/Modem Enclosure In One

The Poynting EPNT-2 (also known as ePoynt-2) is like an XPOL-2-5G, but on Steroids. That is so, because it is not just a directional outdoor panel antenna, but also a router/modem enclosure, which you can use to mount, install or house your router/modem and securely place it outdoors, up high on a pole.

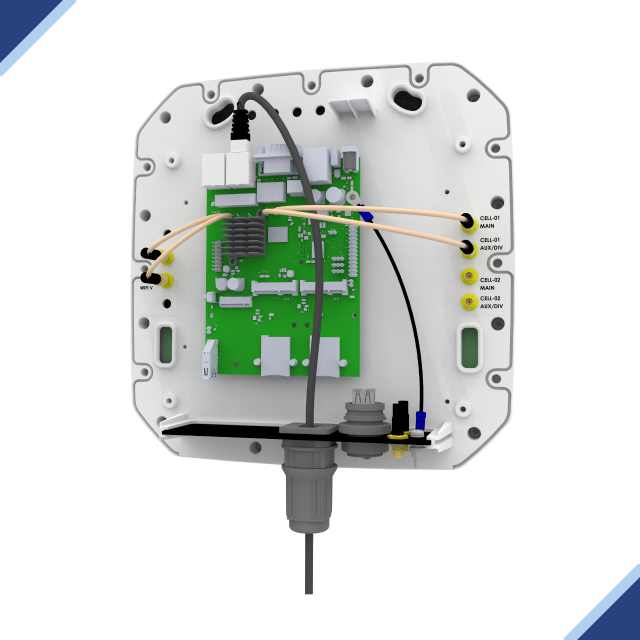

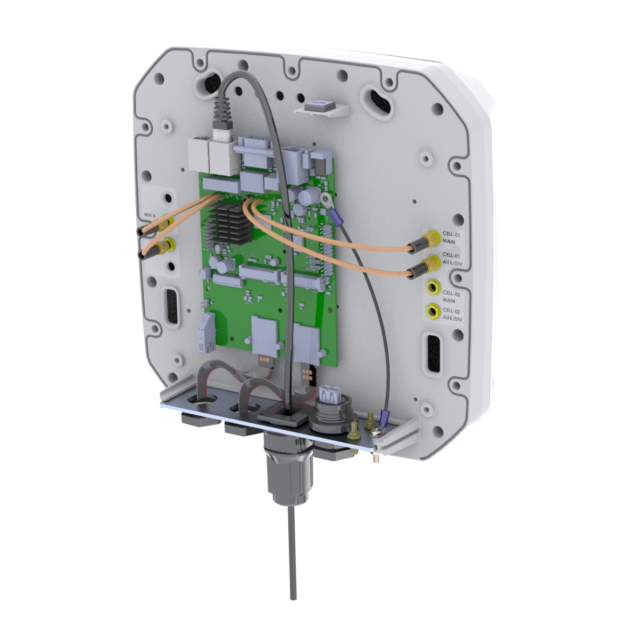

The antenna design greatly eliminates signal loss, eliminating the need to do an extra long coax cable run between the outdoor antenna and the 4G router. You can kiss your cable goodbye since you can mount the router in the antenna itself, so no more long cable runs. You can simply mount your 4G router inside the housing and attach it to cable ports. Read the User Manual to know how you would do this.

In addition, this particular antenna model is uniquely equipped with four cross-polarised cellular antennas, with two uni-directional antennas, that lets you achieve an 11dBi peak gain on the 4G LTE side, while 5dBi on its two omnidirectional antennas. This set of features makes the ePoynt-2 ideal for 4×4 MIMO or dual 2×2 MIMO applications. You can use the two omni-directional antennas as WiFi antennas (works on 2.4 and 5/6GHz). See Antenna Overview for more details.

Read Tech Specs below, to know more.

Key Features: A Waterproof Router Enclosure and a 4G/5G Antenna All-in-one Unit

• Frequency Bands Supported (2G, 3G, 4G, 5G, and Wi-Fi): 698-960 MHz; 1710-2700 MHz; 3400-3800 MHz
• Exceptional high gain performance over the main 4G/5G bands
• All-Weather, dust, and vandal resistant enclosure (IP 65)
• 2x2 MIMO dual-band 2.4 GHz and 5 GHz Wi-Fi antennas
• Cross-polarised antennas for improved performance
• Antenna enclosure with high-performance antennas
• New advanced meta-material technology

Use Case

• Smart environmental, water systems for M2M & IoT, SmartHome and SmartCity Network Builds
• Wi-Fi Hotspot Application for multiple guest client connection
• Internet and Network Distribution and Backhaul
• Outdoor antenna for Fixed Wireless Access (FWA)
• Urban and rural household reception enhancement
• Industrial and commercial 5G/LTE deployment
• Point-to-Point Wireless Network Bridge
• Consumer 5G/LTE internet connectivity
• Oil & Gas communication systems

YouTube Video Presentation

NOTE: The router brand/make shown in the video is the popular Teltonika RUT240. One of our best selling cellular network connectivity solution. Also, you can use other Teltonika Routers such as the RUT360, or the Zyxel NR5103E Three UK Branded router.

Antenna Overview

EPNT-2 vs. EPNT-1

Technical Specification

Where To Buy?

You can order the Poynting EPNT-2 Antenna Weather-proof Router Box online using Add to Cart button. Then go through the checkout page and process your order. You can pay securely using your Credit Card via our secure page, powered by Stripe Payment Gateway or AIB Authipay Gateway.

You could also drop by and buy from our physical store, Novatel Communications, Main Street, Buttevant, Co. Cork.

Shipping Details

How & Where to Buy?

To buy the EPNT-2 Router Enclosure with Antenna, you can drop by (requires prior appointment) our store located at Novatel Communications, Main St, Buttevant, Co. Cork, P51 K066, Ireland.

To order online, simply click on the Add to Cart button, and then go through the fast, easy, and secure checkout process. Payment is provided for your convenience via Authipay Payment Gateway. You can use any supported cards (MasterCard, Visa, etc).
