Poynting Patch-25: Circular RFID LTE/GSM Antenna
Available to Order
- Stock: Out of Stock
- Brand: Poynting
- Model: PATCH-25-2
- Weight: 0.70kg
- EAN: 6009693810259
- MPN: A-PATCH-0025-V2

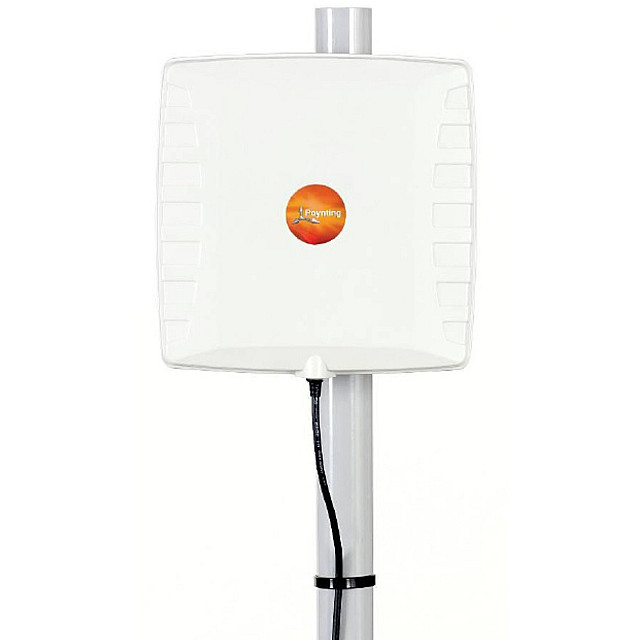

The Poynting PATCH-25 is an 8.75dBi RFID outdoor antenna that works on 860-960 MHz frequency bands. It supports GSM-900MHz and the 800MHz 4G LTE networks. This antenna covers both EU and USA RFID bands, designed and manufactured under EU standards. It is designed to resist water, is all-weatherproof, and is easy to install.
It is circularly polarised for reading in any orientation and so can be used to improve indoor GSM coverage. VSWR is typically less than 1.3:1, giving a return loss better than 20 dB.
This antenna is unique in the RFID environment because of its VSWR & gain specifications.
Thanks to its VSWR & gain specifications, this antenna is unique in the RFID environment.
PATCH-25 VS PATCH-26
These two models are almost the same, only the polarisation is different.
| Quick Comparision | |
|---|---|
| PATCH-25 | Circular RFID Patch Antenna, 860 - 960 MHz |
| PATCH-26 | Linear RFID Patch Antenna, 860 - 960 MHz |
Features
- Robust Design
- Wideband Antenna
- 8.75 dBi Max Gain
- Vandal and water resistant
- Circular (Patch-25) and Linear (Patch-26) Polarised
- Meets the stringent electrical requirements for RFID applications
Applications
Can be used in the following areas:
- Areas of poor GSM-800 and GSM-900 coverage
- Rural and urban environments
- RFID reader applications
- Indoor GSM applications
- Operator agnostic
Technical Specification
Read below data table for Poynting's Patch-25 technical specification.
| Electrical Specifications | |
|---|---|
| Frequency Bands | 860 - 960 MHz |
| Gain (Max) | 8.75 dBi |
| VSWR @ 860 - 935 MHz | < 1.3:1 |
| VSWR @ 935 - 960 MHz | < 1.7:1 |
| Feed Power Handling | 10 W |
| Input Impedance | 50 Ohm (nominal) |
| Polarisation | Circular (Right Hand Circular Polarised) |
| Cable Loss | 0.85dB/m @ 900 MHz |
| DC Short | Yes |
| Mechanical Specifications | |
| Product Dimensions (L x W x D) | 250 x 250 x 40mm |
| Packaged Dimensions | 335 x 250 x 95mm |
| Weight | 0.57 kg |
| Packaged Weight | 0.83 kg |
| Radome Material | ABS (Halogen Free) |
| Radome Colour |
Pantone - Cool Gray (1C) RAL – 7047 |
| Environmental Specifications | |
| Wind Survival | <160km/h |
| Temperature Range (Operating) | -20°C to +70°C |
| Environmental Conditions | Outdoor/Indoor |
| Operating Relative Humidity | Up to 98% |
| Storage Humidity | 5% to 95% - non condensing |
| Storage Temperature | -20°C to +70°C |
| Certification Approvals and Standards | |
| Flammability Rating |
UL 94-V1 EN 13823 |
| Water Ingress Protection Ratio/Standard | IP 65 (NEMA 4X) |
| Impact Resistance | IK 08 |
| Salt Spray | MIL-STD 810F /ASTM B117 |
| Product Safety |
Complies with UL, CE, EN, CSA and IEC standards
|
