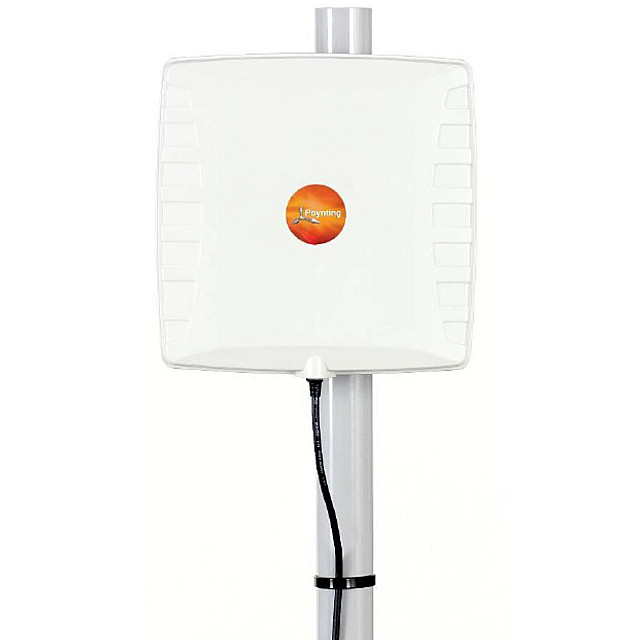

Poynting Patch-26: Linear RFID LTE/GSM Antenna
Available to Order
- Stock: Delivery Lead Time: 7-10 Days
- Brand: Poynting
- Model: PATCH-26
- Weight: 0.75kg
- Dimensions: 33.50cm x 25.00cm x 9.50cm
- EAN: 6009693810020
- MPN: A-PATCH-0026
This Poynting Antenna covers the 900 MHz band and can work on GSM and 800MHz LTE frequency band. The antenna has been designed to be water resistant and is easy to install. It is unique in the RFID environment because of its VSWR & gain specifications.
PATCH-26 Application Areas
- Areas of poor GSM-800 and GSM-900 coverage
- Rural and urban environments
- RFID reader applications
- Indoor GSM applications
PATCH-26 Features
- Robust Design
- Wideband antenna
- Linear polarised
- Vandal and water resistant
- Meets the stringent electrical requirements for RFID applications
PATCH-26 Technical Specification
See below table for PATCH-26s' technical specification.
| Electrical Specifications | |
|---|---|
| Frequency Bands | 820 - 970 MHz |
| Gain (Max) | 8 dBi |
| VSWR @ 820 - 970 MHz | < 1.4:1 over 80% of the band |
| Feed Power Handling | 10 W |
| Input Impedance | 50 Ohm (nominal) |
| Polarisation | Linear |
| Cable Loss | 0.85dB/m @ 900 MHz |
| DC Short | Yes |
| Mechanical Specifications | |
| Product Dimensions (L x W x D) | 250 x 250 x 40mm |
| Packaged Dimensions | 335 x 250 x 95mm |
| Weight | 0.57 kg |
| Packaged Weight | 0.83 kg |
| Radome Material | ABS (Halogen Free) |
| Radome Colour |
Pantone - Cool Gray (1C) RAL – 7047 |
| Environmental Specifications | |
| Wind Survival | <160km/h |
| Temperature Range (Operating) | -20°C to +70°C |
| Environmental Conditions | Outdoor/Indoor |
| Operating Relative Humidity | Up to 98% |
| Storage Humidity | 5% to 95% - non condensing |
| Storage Temperature | -20°C to +70°C |
| Certification Approvals and Standards | |
| Flammability Rating |
UL 94-V1 EN 13823 |
| Water Ingress Protection Ratio/Standard | IP 65 (NEMA 4X) |
| Impact Resistance | IK 08 |
| Salt Spray | MIL-STD 810F /ASTM B117 |
| Product Safety & Certifications |
Complies with UL, CE, EN, CSA and IEC standards
|
Downloads
Ordering Information
| SKU | A-PATCH-0026 |
|---|---|
| EAN | 6009693810020 |
| HS Code | #85291069 |
| Packaged Weight | 0.75kg |
| Packaged Dimensions | 335 x 250 x 95 mm |
| Master Box QTY | 10 |
| Master Box Weight | 12.93kg |
| Master Box Dimensions | 530 x 362 x 505 mm |
