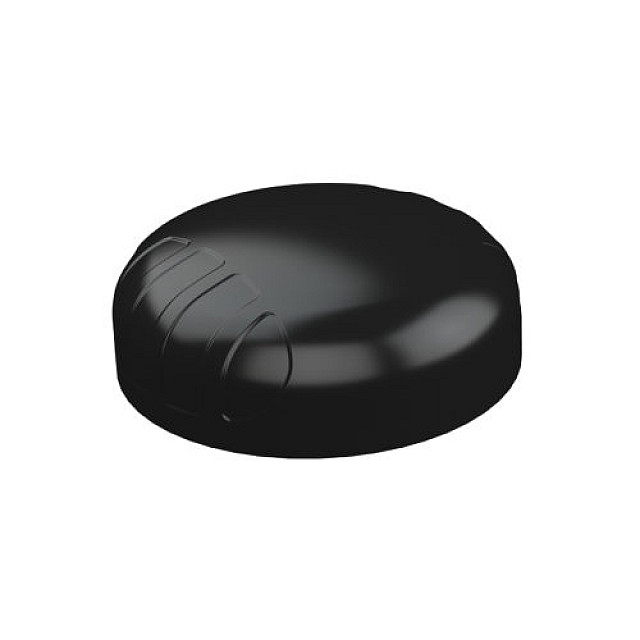

Poynting PUCK-5 Antenna

Poynting’s PUCK-5 antenna offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities and Transportation markets. This 5-in-1 antenna boasts 2×2 MIMO LTE, 2×2 MIMO Wi-Fi (Dualband 2.4GHz & 5GHz) and GPS/GLONASS within the same enclosure, while keeping implementation as simple as possible with its many mounting options. Due to excellence in engineering and a solid design, this antenna provides exceptional performance for its small size.

The 2x Cellular MIMO antennas (for 2G/3G/4G) cover the 698MHz to 3800MHz band, which includes the most popular international LTE bands. The antenna provides 2x dual-band Wi-Fi antennas, providing concurrent 2.4GHz and 5GHz on each antenna, capable of 802.11n, 802.11ac and the new 802.11ax with 2×2 MIMO. The fifth antenna is a high performance active GPS/GLONASS system operating at temperatures as low as -40ºC.

Poynting’s new PUCK antenna range provides easy installation with the multiple mounting options. This includes as standard:

• Spigot Mount – two different lengths included (40mm & 80mm)
• Vertical Pole mount (inner & outer mounting for smaller and larger poles)
• Horizontal Pole Mount (e.g. marine rails)
• Magnetic Mount
• Surface Mount (Double Sided Tape)
• Wall Mount

Features

• 5-IN-1 HIGH PERFORMANCE
• SMALL SIZE ANTENNA
  • 2×2 MIMO LTE: 690 MHZ – 3800 MHZ
  • 2×2 MIMO WI-FI: DUALBAND 2.4 – 2.5 & 5-6 GHZ
  • GPS/GLONASS: 1575.42/1600 MHZ
• 2G/3G/4G/LTE antenna (5G Ready, includes 3.2GHz to 3.8GHz CBRS Band)
• 2 x MiMo LTE, 2 x MiMo Wi-Fi
• High Performance GPS / GLONASS
• Small & Low-Profile (Ø 100mm x h 36mm)
• Waterproof & Dustproof (complies with IP68)
• Highly Ruggedised (complies with IK10)
• Fire Resistant (certified with ECE-R 118.02)
• Easy installation; multi implementation options (as standard)
  • Spigot Mount
  • Magnetic Mount
  • Double Sided Tape Mount
  • Bracket Mount
• UV Stable Enclosure
• Wideband – covers wide frequency band
• Ground plane independent – performs consistently with and without a ground plane.
