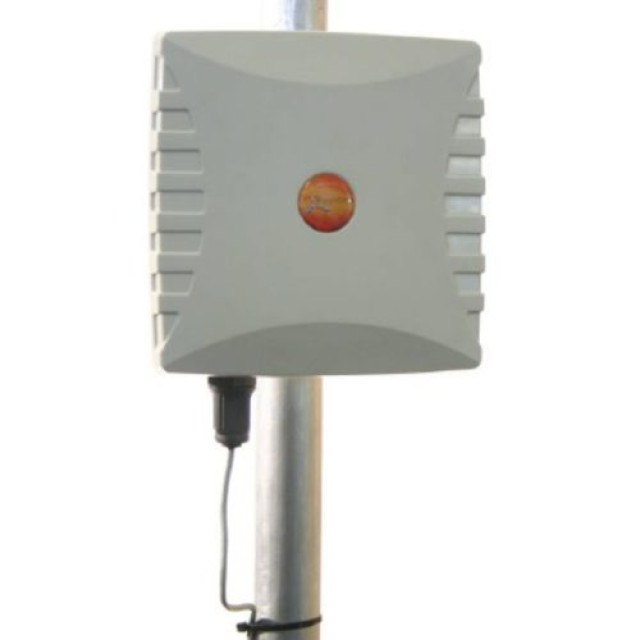

Poynting WLAN-60: Dual-band WiFi Directional Antenna
Available to Order
- Stock: Delivery Lead Time: 7-10 Days
- Brand: Poynting
- Model: WLAN-60
- Weight: 1.33kg
- Dimensions: 26.00cm x 28.00cm x 8.00cm
- EAN: 707273469571
- MPN: A-WLAN-0060-V1
This Wi-Fi external/outdoor directional antenna features an 18dBi gain with <2.5:1 VSWR. Connects to a network router via SMA Female connector, compact design, quick and very easy to setup.
It supports 2.4GHZ (13dBi max gain) and 5GHz (18dBi max gain) WiFi frequency bands, which makes it very appealing for dual-band WiFi users out there. It lets you operate under the 5GHZ WiFi so you can resolve channel saturation and provide ultimate WiFi performance and reliability. You can use this to beam wireless Internet from point a to point b, like from the main router to wifi access point or extender.
The signal-enhancing parts and devices are housed in an ABS enclosure, which is high impact-resistant plastic and acid-resistant. The antenna enclosure can be opened on the side, where an SMA female connector can be placed. You can then connect the cable through the bypass gland, which means you don’t have to join the antenna cable to the extension cables. This eliminates connector losses and the need for taping and waterproofing the connectors for an outdoor installation.
Read the full technical specification in this section.
Key Features
- Quick and Easy to Setup
- Compact & Ruggedized Design
- High Gain (Max Gain of 18dBi)
- Dual Band (2.4 and 5Ghz Wi-Fi)
- Compliant with IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac wireless standard
- Not Just a Wi-Fi Antenna, but also an LTE 3.3GHz-3.8Ghz External Antenna (15dBi Max Gain)
WLAN-60 VS WLAN-61: Quick Comparison
Here's a quick comparison of the two, so you can decide on which model to grab.
| WLAN-60 | WLAN-61 | |
| Supported Frequencies |
2400 - 2500 MHz (2.4GHz WiFi) 3300 - 3800 MHz (3GHz LTE) 5000 - 6000 MHz (5GHz WiFi) |
2400 - 2500 MHzz (2.4GHz WiFi) 5000 - 6000 MHzz (5GHz WiFi) |
|
Max Gain (Note: Antenna gain is measured with polarisation aligned standard antenna) |
2400 - 2500 MHz: 13 dBi 3300 - 3800 MHz: 15 dBi 5000 - 6000 MHz: 18 dBi |
2400 - 2500 MHz: 9 dBi 5000 - 6000 MHz: 11dBi |
| SMA Female Connector | 1x | 4x |
Sample Application
Below are just sample applications and areas where you can use this antenna for:
- Production Facilities
- 3.3GHz -3.8GHz LTE Applications
- M2M or Machine-to-Machine Connection
- Industrial Environment and Factories
- Open Site Mines and Huge Outdoor Areas
- Single Storey or Multi-storey Building Sites
- Small Home or Large Office & Business Applications
- Areas where there is poor Wi-Fi connection and a lot of RF noise
- Areas where there is a large amount of Machinery (cluttered environment)
Technical Specification
See the below table for WLAN-60's technical specifications.
| Electrical Specifications | |
|---|---|
| Frequency Bands |
2400 - 2500 MHz 3300 - 3800 MHz 5000 - 6000 MHz |
| Gain (Max) | 18 dBi |
| VSWR | <2.5:1 |
| Feed Power Handling | 10 W |
| Input impedance | 50 Ohm (nominal) |
| Polarisation | Linear Vertical |
| Path to ground | Yes |
| Cable Length | N/A |
| Cable Type | N/A |
| Connector | SMA Female |
| Mechanical Specifications | |
| Product Dimensions (L x W x D) | 240 mm x 240 mm x 60 mm |
| Packaged Dimensions | 260 mm x 280mm x 80mm |
| Weight | 760.6g |
| Packaged Weight | 1334.8g |
| Radome Material | ABS (Halogen Free) |
| Radome Colour |
Cool Gray (1C) RAL 7047 |
| Environmental Specifications | |
| Wind Survival | 160km/h |
| Temperature Range (Operating) | -40°C to +70°C |
| Environmental Conditions | Outdoor/Indoor |
| Operating Relative Humidity | Up to 98% |
| Storage Humidity | 5% to 95% - non-condensing |
| Storage Temperature | -40°C to +70°C |
| Certification Approvals and Standards | |
| Flammability Rating | UL 94-V0 |
| Water Ingress Protection Ratio/Standard | IP 65 (NEMA 4X) |
| Impact Resistance | IK 08 |
| Salt Spray | MIL-STD 810F /ASTM B117 |
| Product Safety |
Complies with UL, CE, EN, CSA and IEC standards
|
Downloads
Product Box Contents
Product box content includes the following:
- Antenna: A-WLAN-0060-V1
- Mounting Bracket: Cast aluminum swivel bracket (NOTE: The cable and connector is factory mounted to the antenna)
Ordering Information
| SKU | A-WLAN-0060-V1 |
|---|---|
| EAN | 707273469571 |
| HS Code | #85291069 |
| Packaged Weight | 1.334kg |
| Packaged Dimensions | 260 x 280 x 80 mm |
| Master Box QTY | 14 |
| Master Box Weight | 18.5kg |
| Master Box Dimensions | 520 x 495 x 400 mm |
| Country of Origin | China |
