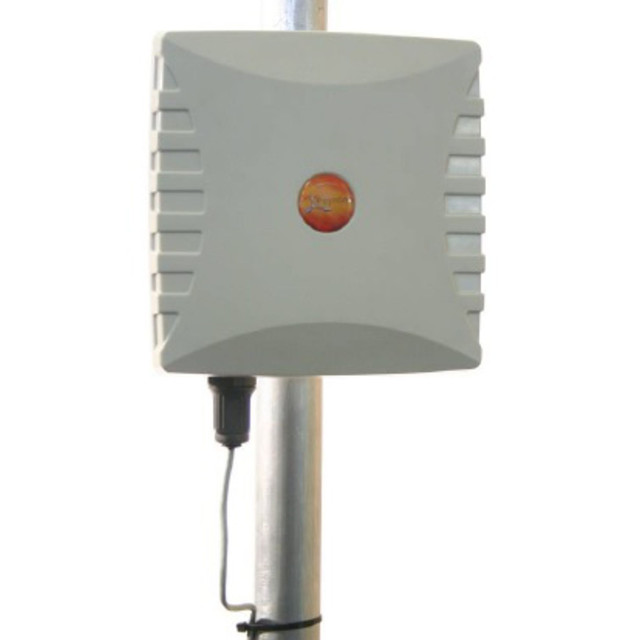

Poynting WLAN-61: Dual-band WiFi Directional Antenna
Available to Order
- Stock: Delivery Lead Time: 7-10 Days
- Brand: Poynting
- Model: WLAN-61
- Weight: 1.33kg
- Dimensions: 26.00cm x 28.00cm x 8.00cm
- EAN: 707273469670
- MPN: A-WLAN-0061-V1
The WLAN-61 is a dual-band MIMO Wi-Fi Antenna, that you can use as an external/outdoor antenna for Routers/Access Points or Extenders/Repeaters. Its robust antenna design is water-resistant, durable, and easy to set up. It can work as a 2.4GHz or 5GHz Wifi antenna, which lets you improve poor wireless signal distribution across your local area network. Once installed and configured, you'll enjoy lag-free, high throughput, fast, and reliable wireless performance within your local area network.
61 vs. 60: Quick Comparison
Here's a quick comparison of the two, so you can decide on which model to pick.
|
|
WLAN-61 | WLAN-60 |
| Supported Frequencies |
2400 - 2500 MHzz (2.4GHz WiFi) 5000 - 6000 MHzz (5GHz WiFi) |
2400 - 2500 MHz (2.4GHz WiFi) 3300 - 3800 MHz (3GHz LTE) 5000 - 6000 MHz (5GHz WiFi) |
|
Max Gain (Note: Antenna gain measured is with Polarisation aligned standard antenna) |
2400 - 2500 MHz: 9 dBi 5000 - 6000 MHz: 11dBi |
2400 - 2500 MHz: 13 dBi 3300 - 3800 MHz: 15 dBi 5000 - 6000 MHz: 18 dBi |
| SMA Female Connector | 4x | 1x |
Key Features
- Directional
- Water Resistant
- Dual Band 2.4Ghz and 5GHz
- 4X4 MiMo (4x SMA Femail Connector)
Sample Application
- WiFi Expansion in Small Homes & Offices
- M2M or Machine-to-Machine Wireless Connection
- Wireless Network Distribution in Factories and Warehouses
- Open mine areas and areas with a lot of radio frequency noise
- Enhancing Poor Data Signal Reception in any Indoor or Outdoor Areas
- Anything you can think of, that needs wireless network connectivity
Technical Specification
See the below table for WLAN-61's technical specifications.
| Electrical Specifications | |
|---|---|
| Frequency Bands |
2400 - 2500 MHz 5000 - 6000 MHz |
| Gain (Max) | 11 dBi |
| VSWR | <2.5:1 |
| Feed Power Handling | 10 W |
| Input impedance | 50 Ohm (nominal) |
| Polarisation | Linear Vertical |
| Path to ground | Yes |
| Cable Length | N/A |
| Cable Type | N/A |
| Connector | SMA Female |
| Mechanical Specifications | |
| Product Dimensions (L x W x D) | 240 mm x 240 mm x 60 mm |
| Packaged Dimensions | 260 mm x 280mm x 80mm |
| Weight | 760.6g |
| Packaged Weight | 1334.8g |
| Radome Material | ABS (Halogen Free) |
| Radome Colour |
Cool Gray (1C) RAL 7047 |
| Environmental Specifications | |
| Wind Survival | 160km/h |
| Temperature Range (Operating) | -40°C to +70°C |
| Environmental Conditions | Outdoor/Indoor |
| Operating Relative Humidity | Up to 98% |
| Storage Humidity | 5% to 95% - non condensing |
| Storage Temperature | -40°C to +70°C |
| Certification Approvals and Standards | |
| Flammability Rating | UL 94-V0 |
| Water Ingress Protection Ratio/Standard | IP 65 (NEMA 4X) |
| Impact Resistance | IK 08 |
| Salt Spray | MIL-STD 810F /ASTM B117 |
| Product Safety |
Complies with UL, CE, EN, CSA and IEC standards
|
Downloads
Product Box Contents
- Antenna: A-WLAN-0061-V1
- Mounting Bracket: Cast aluminum swivel bracket (The cable and connector are factory mounted to the antenna)
Ordering Information
- Commercial Name: WLAN-61
- Order Product Code: A-WLAN-0061-V1
- EAN Number: 0707273469670
