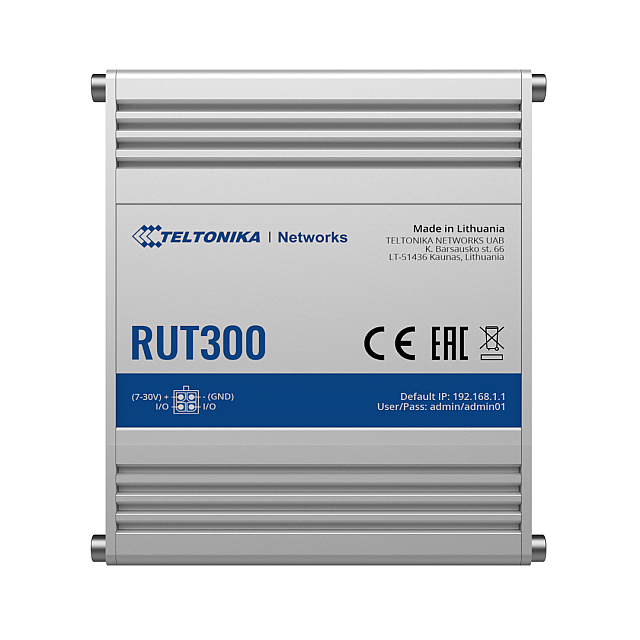

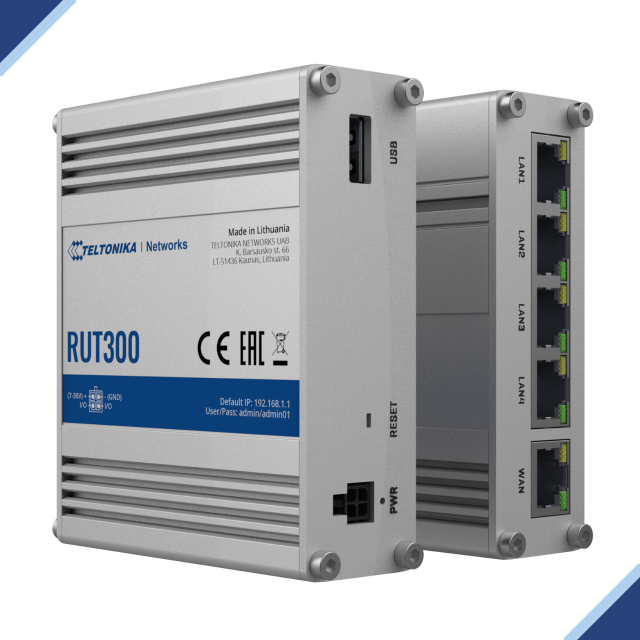

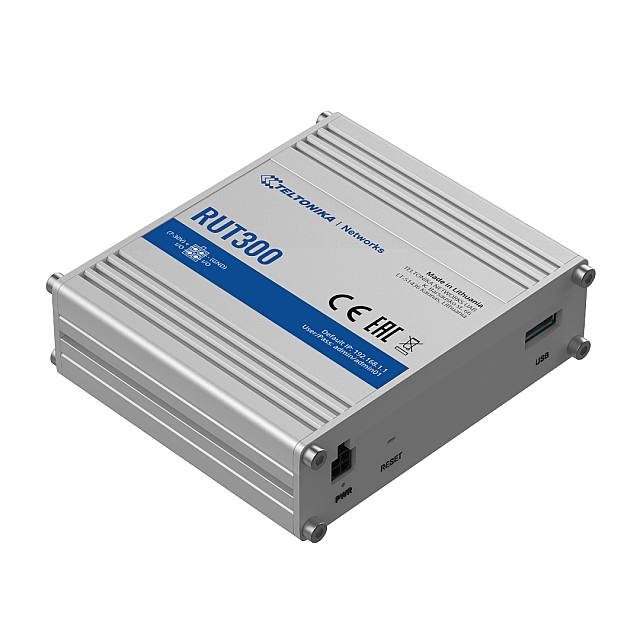

[EOL] Teltonika RUT300: Ethernet Router with VPN and VLAN Support

[EOL] Teltonika RUT300: Ethernet Router with VPN and VLAN Support
[EOL] Teltonika RUT300: Ethernet Router with VPN and VLAN Support
[EOL] Teltonika RUT300: Ethernet Router with VPN and VLAN Support
[EOL] Teltonika RUT300: Ethernet Router with VPN and VLAN Support
€4.88 Local IE Flat Rate Shipping (€6 w/ VAT) EOL

Available to Order

Currently not in stock, available to order. Take note of the Estimated Delivery Lead Time below for this specific item, before placing your order(s), so you'd know when to expect delivery. Contact us for order-related enquiries.

Based on 0 reviews. - Write a review
€84.00
Ex Tax: €68.29

Available Options

Add to Cart
Send Us An Order Ask Question
Add to Wish List

Replaced by RUT301 -- The RUT300 is the small brother of the RUTX08 router, which also has a WAN and a LAN port, perfect for challenging networking tasks, as well as for a secure and robust networking applications in an industrial setting.

It is equipped with Five 10/100Mbps Ethernet ports, two configurable digital I/O, and a USB port, enabling you to conveniently connect various equipment to the internet.

It comes with a pre-configured Firewall for out-of-the-box security and multiple VPN protocol support. It is very economical with a lot of features for various industrial applications and added to this - is the RutOS, based on OpenWRT - which is RMS (Remote Management System) compatible router software.

Don’t forget that it also has a Passive PoE, which helps reduce deployment complexity.

MOUNTING OPTIONS
DIN RAIL KIT
Parameter Value
Mounting standard 35mm DIN Rail
Material Low carbon steel
Weight 57g
Screws included Philips Pan Head screw #6-32×3/16, 2pcs
Dimensions 82 mm x 46 mm x 20 mm
RoHS Compliant Yes



DIN RAIL KIT

DIN Rail adapter

Philips Pan Head screw #6-32×3/16, 2pcs for RUT2xx/RUT9xx




ORDER CODE HS CODE HTS CODE
PR5MEC00 73269098 7326.90.98



COMPACT DIN RAIL KIT
Parameter Value
Mounting standard 35mm DIN Rail
Material ABS + PC plastic
Weight 6.5 g
Screws included Philips Pan Head screw #6-32×3/16, 2pcs
Dimensions 70 mm x 25 mm x 14,5 mm
RoHS Compliant Yes



DIN RAIL KIT

Compact plastic DIN Rail adapter (70x25x14,5mm)

Philips Pan Head screw #6-32×3/16, 2pcs




ORDER CODE HS CODE HTS CODE
PR5MEC11 73269098 7326.90.98



SURFACE MOUNTING KIT
Parameter Value
Mounting standard Flat surface mount
Material ABS + PC plastic
Weight 2x5 g
Screws included Philips Pan Head screw #6-32×3/16, 2pcs
Dimensions 25 mm x 48 mm x 7.5 mm
RoHS Compliant Yes



DIN RAIL KIT

Surface mounting kit

Philips Pan Head screw #6-32×3/16, 2pcs




ORDER CODE HS CODE HTS CODE
PR5MEC12 73269098 7326.90.98

How & Where to Buy?

To buy the Teltonika RUT300 Ethernet Router, you can drop by our store (by appointment only) located at Novatel Communications, 12 Main Street, Buttevant, Co. Cork, Ireland.

To purchase online, simply click on the Add to Cart button, and then go through the fast, easy and secure checkout process. Payment is provided for your convenience via Stripe Payment Gateway.

You can use any card supported by it (MasterCard, Visa, American Express, Diners, and more…).

How Will My Order Be Delivered?

Your order(s) will be shipped via express delivery and are normally delivered within 1-4 business days. Your order will be dispatched directly from our warehouse and you will be provided a tracking information for your order, after it is dispatched. If you have any questions on your order status, please contact us.

Connect to the world with Teltonika Networks Cellular Routers, the most reliable and secure devices for your network. Get them now at Novatel, your Teltonika Distributor in Ireland.

Write a review

Please login or register to review

Get geeky with the Teltonika RUT300 Full Technical Specifications below.

ETHERNET
WAN 1 x WAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
LAN 4 x LAN ports (can be configured as secondary WAN ports), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards,
supports auto MDI/MDIX crossover
NETWORK
Routing Static routes, Dynamic routes (planned)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP (planned), SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, DHCP, Telnet
client, SNMP (planned), MQTT (planned), Wake on LAN (WOL) (planned)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP, and ICMP for link inspection
Firewall Port forwards, traffic rules, NAT rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay
QoS / Smart Queue Manage-
ment (SQM) (planned)		 Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS (planned) Supported >25 service providers, others can be configured manually
Network backup Wired WAN options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol
SECURITY
Authentication Pre-shared key, digital certificates, X.509 Certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,
SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port, and tag-based VLAN separation
WEB filter (planned) Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC,
AES-192-CBC, AES-256-CBC
IPSec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support (planned)
Stunnel (planned) Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN (planned) DMVPN is a method of building scalable IPsec VPNs
SSTP (planned) SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
MODBUS TCP SLAVE (PLANNED)
ID filtering Respond to one ID in the range [1;255] or any
Allow remote access Allow access through WAN
Custom registers MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality
MODBUS TCP MASTER (PLANNED)
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
MQTT GATEWAY (PLANNED)
Gateway Allows sending commands and receiving data from MODBUS Master trough MQTT broker
DATA TO SERVER (PLANNED)
Protocols HTTP(S), MQTT, Azure MQTT, Kinesis
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshooting, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH: SSH (v1, v2)
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech:, AVSystem
MQTT (planned) MQTT Broker, MQTT publisher
SNMP (planned) SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS (planned) Modbus TCP status/control
RMS Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
CPU QCA9531, MIPS 24kc, 650 MHz
RAM 64 MB, DDR2
FLASH storage 16 MB, SPI Flash
FIRMWARE / CONFIGURATION
WEB UI Update FW from a file, check FW on the server, configuration profiles, configuration backup
FOTA Update FW/configuration from the server
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing the current configuration
USB
Data rate USB 2.0
Applications Samba share (planned), USB-to-serial (planned)
External devices Possibility to connect external HDD, flash drive, printer (planned)
Storage formats FAT, FAT32, NTFS
INPUT/OUTPUT
Configurable I/O 2 x Configurable digital Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA
Events Email, RMS
I/O Juggler Allows to set certain I/O conditions to initiate an event
POWER
Connector 4-pin industrial DC power socket
Input voltage range 7 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, IEEE802.3at, and IEEE802.3bt standards
Power consumption Idle: 1.3 W, Max: 3 W

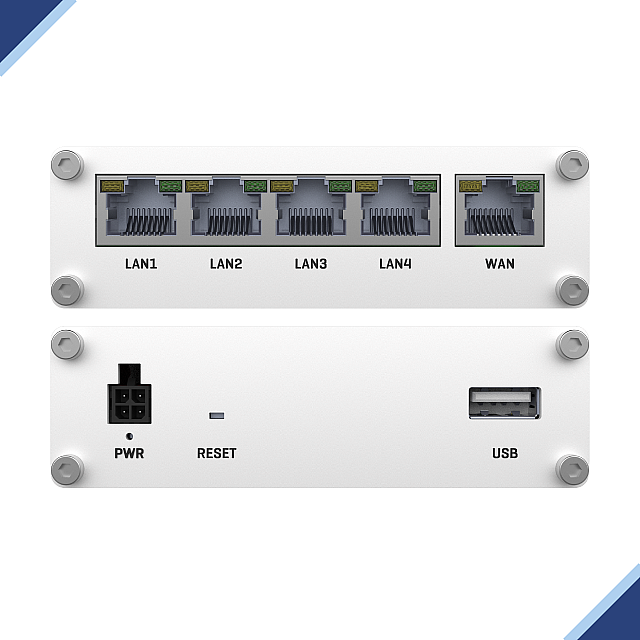

PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 5 x RJ45 ports, 10/100 Mbps
I/Os 2 x Configurable digital Inputs/Outputs on 4 pin power connector
Status LEDs 5 x ETH status, 1 x Power
Power 1 x 4-pin DC connector
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
Casing material Aluminum housing with DIN rail mounting option
Dimensions (W x H x D) 100 x 30 x 85 mm
Weight 229 g
Mounting options DIN rail, flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
