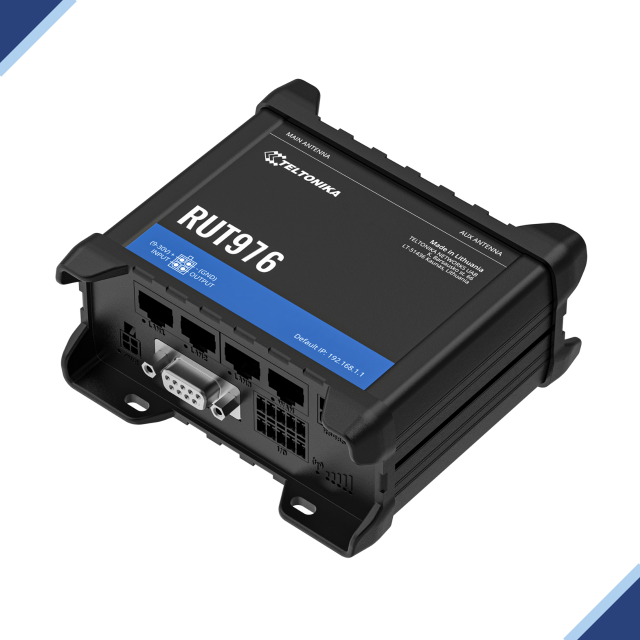

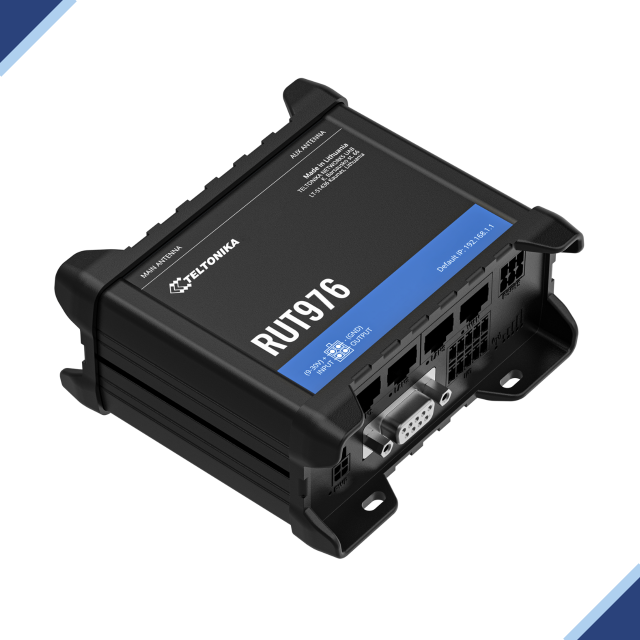

Teltonika RUT976: RedCap 5G Router for Industrial Use Cases
Available to Order
Currently not in stock, available to order. Take note of the Estimated Delivery Lead Time below for this specific item, before placing your order(s), so you'd know when to expect delivery. Contact us for order-related enquiries.
- Stock: Delivery Lead Time: 7-10 Days
- Brand: Teltonika Networks
- Model: RUT976
- Weight: 295.00g
- Dimensions: 100.00mm x 110.00mm x 50.00mm
- MPN: RUT976
Included in the Price of this Product is the WEEE Recycling Charge.
Step into the future of connectivity with the Teltonika RUT976 — a router designed to deliver dependable and secure internet access, no matter the environment. Whether you’re managing industrial operations, deploying IoT networks, or ensuring connectivity in remote areas, this powerful RedCap 5G router is the ultimate solution for professionals seeking efficiency and reliability.
The Teltonika RUT976 is a cutting-edge industrial-grade RedCap 5G router designed to bridge the gap between traditional 4G and full-capacity 5G connectivity. With its dual-SIM slots and auto-failover capabilities, it ensures seamless and reliable internet access, even in challenging environments. This router supports up to 100 simultaneous wireless connections, making it ideal for professional deployments.
Equipped with four Ethernet ports, Wi-Fi, GNSS, and advanced I/O interfaces like RS232 and RS485, the RUT976 is versatile and future-proof. It boasts low latency, high capacity, and backward compatibility with 4G LTE Cat 4, ensuring robust performance in areas with limited 5G coverage. Powered by the RutOS software, it offers advanced networking solutions, enhanced security, and user-friendly management features.
Whether for industrial automation, IoT applications, or remote connectivity, the Teltonika RUT976 delivers exceptional performance and reliability.
Key Features
Let's explore what makes the RUT976 a standout solution:
- OpenWrt Support: Utilize an open-source platform for flexibility and customization to meet your unique requirements.
- Advanced Security with RutOS: Protect sensitive data with robust security features and maintain operational peace of mind.
- Dual-SIM & Auto-Failover: Stay connected, even when one network fails, thanks to dual-SIM redundancy and automatic failover.
- Versatile Ports & Interfaces: With Ethernet, Wi-Fi, GNSS, RS232, and RS485 interfaces, the RUT976 adapts to any project with ease.
- RedCap 5G Connectivity: Experience seamless internet access with lower latency and enhanced capacity, ideal for high-demand applications.
Downloads
- Download Technical Specification (PDF)
- Download the Latest Firmware
- Quick Start Guide: EN (Web Page)
- User Manual: EN (Web Page)
Classification Codes
- HS Code: 851762
- HTS: 8517.62.00
What’s in the Box?
Standard Goodies Inside:
- the RUT976 router unit
- 9W Power Supply Unit
- 2x 5G Mobile antennas (swivel, SMA male)
- 2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
- GNSS antenna (adhesive, SMA male, 3 m cable)
- RS485 connector block
- I/O connector block
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide)
- Packaging box, to keep or recycle
How & Where to Buy?
The Teltonika RUT976 combines advanced features, unmatched reliability, and flexibility, making it the perfect choice for professionals seeking seamless and secure connectivity. From its innovative RedCap 5G capabilities to its versatile integrations, this router redefines the way you work and connect. Choose the RUT976 today and empower your operations like never before.
To buy the Teltonika RUT976 RedCap Router, you can drop by (requires prior appointment) our store located at Novatel Communications, Main St, Buttevant, Co. Cork, P51 K066, Ireland.
To order online, click on the Add to Cart button, and then go through the fast, easy, and secure checkout process. Payment is provided for your convenience via Authipay Payment Gateway. You can use any supported cards (MasterCard, Visa, etc).
How Will My Order Be Delivered?
Your order(s) will be shipped via express delivery and are typically delivered within 1-4 business days. Your order will be dispatched directly from our warehouse and you will be provided a piece of tracking information for your order after it is dispatched. If you have any questions about your order status, don’t hesitate to get in touch with us.
Connect to the world with Teltonika Networks Cellular Routers, the most reliable and secure devices for your network. Get them now at Novatel, your Teltonika Distributor in Ireland.
Get geeky with the Teltonika RUT976 RedCap 5G Router Full Technical Specifications below.
Technical Specifications
| Mobile | |
|---|---|
| Mobile Module | 5G Sub-6Ghz SA 223 Mbps DL, 123 Mbps UL; 4G LTE Cat 4 s code DMVPN,"Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server support |
| Tinc | Tinc offers encryption, authentication, and compression in its tunnels. Client and server support. |
| BACNET | |
| Supported Modes | Router |
| Supported Connection Types | RS485, TCP |
| Configuration Options | Support for multiple BACNet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device) |
| OPC UA | |
| Supported Modes | Client, Server |
| Supported Connection Types | TCP |
| MODBUS | |
| Supported Modes | Server, Client |
| Supported Connection Types | RTU (RS232, RS485), TCP, USB |
| Custom Registers | MODBUS TCP custom register block requests, which read/write to a file inside the router and can be used to extend MODBUS TCP Client functionality |
| Supported Data Formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD - big-endian, DCBA - little-endian, CDAB, BADC), HEX, ASCII |
| DATA TO SERVER | |
| Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis |
| Data to Server | Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature |
| MQTT Gateway | |
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
| DNP3 | |
| Supported Modes | TCP Master, DNP3 Outstation |
| Supported Connection Types | RS232, RS485, TCP, USB |
| DLMS | |
| DLMS Support | DLMS - standard protocol for utility meter data exchange |
| Supported Modes | Client |
| Supported Connection Types | RS232, RS485, TCP |
| COSEM | Allows scanning of meter COSEM objects for automatic detection and configuration |
| API | |
| Teltonika Networks Web API (beta) support | Expand your device's possibilities by using a set of configurable API endpoints to support retrieve or change data. For more information, please refer to this documentation |
| Monitoring & Management | |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
| Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off |
| Receive email message status alerts of various services | |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech:, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| RMS | Teltonika Remote Management System (RMS) |
| IoT Platforms | |
| ThingWorx | Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity - Cloud of Things | Allows monitoring of Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, and Signal Strength. Has reboot and firmware upgrade actions |
| Azure IoT Hub | Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support, which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs |
| AWS IoT Core | Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality |
| System Characteristics | |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| FLASH Storage | 32 MB, NOR Flash |
| Firmware / Configuration | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep Settings | Update FW without losing current configuration |
| Factory Settings Reset | A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration |
| FIRMWARE CUSTOMISATION | |
| Operating System | RutOS (OpenWrt based Linux OS) |
| Supported Languages | Busybox shell, Lua, C, C++ |
| Development Tools | SDK package with build environment provided |
| Gpl Customization | You can create your own custom branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients' needs |
| Package Manager | The Package Manager is a service used to install additional software on the device |
| Location Tracking | |
| GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
| Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
| NMEA | NMEA 0183 |
| NTRIP | NTRIP protocol (Networked Transport of RTCM via Internet Protocol) |
| Server Software | Supported server software TAVL, RMS |
| Geofencing | Configurable multiple geofence zones |
| Serial | |
| RS232 | DB9 connector, RS232 (with RTS, CTS flow control) |
| RS485 | RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate |
| Serial Functions | Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client |
| USB | |
| Data Rate | USB 2.0 |
| Applications | Samba share, USB-to-serial |
| External Devices | Possibility to connect external HDD, flash drive, printer, USB-serial adapter |
| Storage Formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
| Input / Output | |
| Input | 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high) |
| Output | 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30V, 300 mA, on 4-pin power connector) |
| Events | Email, RMS, SMS |
| I/O juggler | Allows to set certain I/O conditions to initiate event |
| SD CARD | |
| Physical Size | Micro SD (internal) |
| Applications | Samba share, Storage Memory Expansion, DLNA |
| Capacity | Up to 2 TB |
| Storage Formats | FAT32, NTFS, ext2, ext3, ext4 |
| Power | |
| Power Consumption | Idle: 3 W, Max: 7 W |

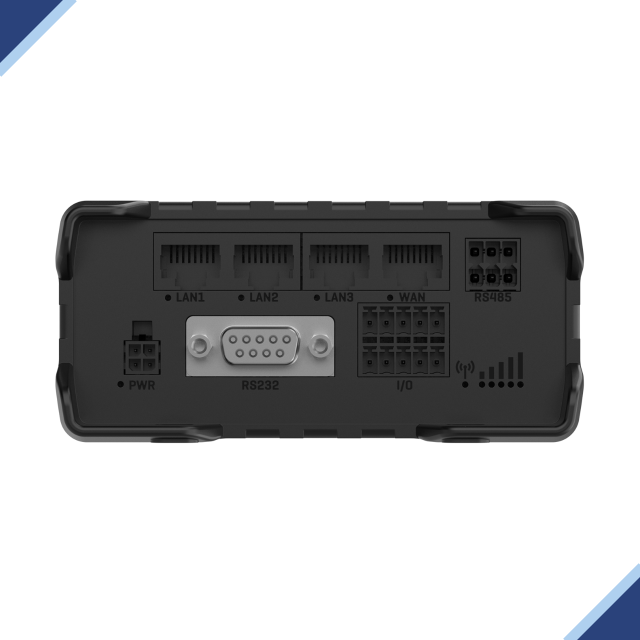

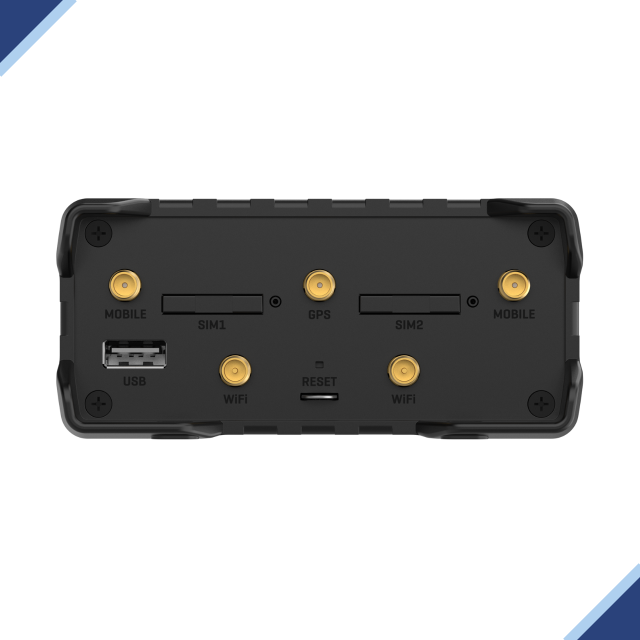

| Physical Interfaces | |
| Ethernet | 4 x RJ45 ports, 10/100 Mbps |
| I/Os | 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector |
| Status LEDs | 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager) |
| Power | 1 x 4-pin power connector |
| Input/Output | 1 x 10-pin industrial socket for inputs/outputs |
| Antennas | 2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
| USB | 1 x USB A port for external devices |
| RS232 | 1 x DB9 socket |
| RS485 | 1 x 6-pin industrial socket |
| Reset | Reboot/User default reset/Factory reset button |
| Physical Specification | |
| Casing Material | Aluminum housing, plastic panels |
| Dimensions (W x H x D) | 110 x 50 x 100 mm |
| Weight | 295 g |
| Mounting Options | DIN rail, wall mount, flat surface (all require additional kit) |
| Operating Environment | |
| Operating Temperature | -40°C to 75°C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory | |
| Regulatory | WEEE |
