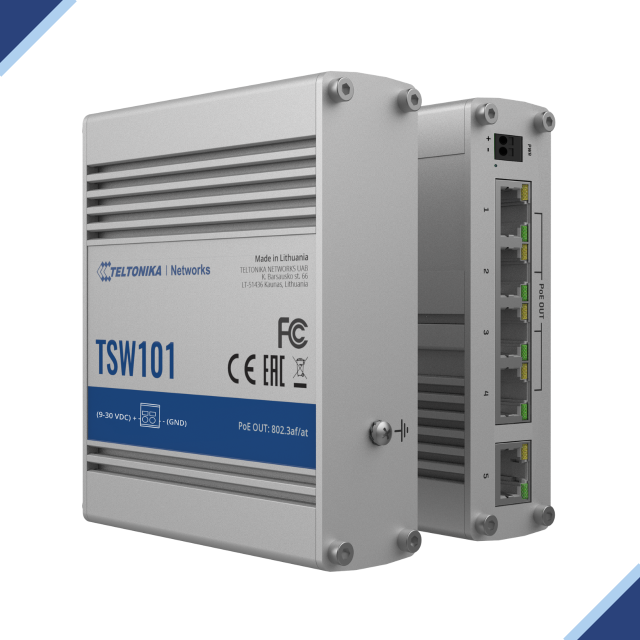

Teltonika TSW101: Five Gigabit Ethernet Port Switch - 4x PoE+ Ports with 802.3af and 802.3at Support
Available to Order
- Stock: Out of Stock
- Brand: Teltonika Networks
- Model: TSW101
- Weight: 354.00g
- Dimensions: 95.00mm x 115.00mm x 32.00mm
- MPN: TSW101
Power up your network with a simple and reliable switch. Meet the Teltonika TSW101! It’s an unmanaged Layer 2 switch that offers Five (5) Gigabit Ethernet ports with PoE+ support to connect and power multiple devices in your vehicle or industrial application.
The easy and economical solution for your network needs.
TSW101 Features
Ready to be wowed? See the features below:
PoE+ Support
The TSW101 has four PoE+ ports that can deliver up to 30W of power per port and up to 60W of total power budget, depending on the input voltage. This allows you to power up devices such as IP cameras, wireless access points, or sensors over the same Ethernet cable that carries data, reducing the need for extra wiring and adapters.
Gigabit Ethernet
This automotive switch has Five Gigabit Ethernet ports that can handle speeds up to 1000 Mbps, ensuring smooth and fast data transfer for your devices. Whether you need to connect industrial PCs, printers, IP phones, or laptops, the TSW101 can support them all.
Rugged Design
This switch is built to last in harsh environments. It has a sturdy aluminum housing that protects it from dust and vibration. It also supports a wide range of operating temperatures, from -40°C to 75°C, making it suitable for various indoor and outdoor applications.
Easy Installation
The TSW101 is easy to install and use. It supports a wide range of input voltage, from 9 VDC to 30 VDC, making it compatible with different power sources. It also offers flexible mounting options, such as DIN rail, wall, or flat surface.
Technical Specifications
Get geeky with the technical specs below.
| ETHERNET | |
|---|---|
| LAN | 5 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| PoE OUT | |
| PoE Ports | Port 1 - 4 |
| PoE Standards | 802.3af and 802.3at |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 60 W |
| Maximum Ethernet Cable Length | 100 M |
| PERFORMANCE SPECIFICATIONS | |
| Bandwidth (Non-blocking)) | 10 Gbps |
| Packet Buffer | 128 KB |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9216 bytes |
| POWER | |
| Connector | 2-pin industrial DC power socket |
| Input Voltage Range | 9 - 30 VDC |
| Input Voltage Range for PoE | 9 - 30 VDC |
| Power Consumption | Idle: 0.8 W / Max: 2.2 W / PoE Max: 106 W |
| PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x ETHERNET status LED’s |
| Power | 1 x 2-pin industrial DC power socket |
| Grounding | 1 x Grounding screw |
| PHYSICAL SPECIFICATION | |
| Casing Material | Aluminum housing |
| Dimensions (W x H x D) | 115 x 32 x 95 mm |
| Weight | 354 g |
| Mounting Options | DIN rail or wall mounting (additional kit needed), flat surface placement |
| OPERATING ENVIRONMENT | |
| Operating Temperature | -40°C to +75°C |
| Operating Humidity | 10 % to 90 % non-condensing |
| Ingress Protection Rating | IP30 |
| CERTIFICATION & APPROVALS | |
| Regulatory | CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM, E-Mark |
| SAFETY | |
| Standards | EN IEC 62368-1:2020+A11:2020 |
What’s In The Box
Standard goodies inside:
- The TSW101 Unit
- QSG (Quick Start Guide)
- Packaging box, to keep or recycle
NOTE: Powering Options Sold Separately:
- Teltonika Powering Option EU 2-Pin Power Supply 9w PR3PREU6
- Additional information regarding powering options
How & Where to Buy?
To buy the Teltonika TSW101 PoE+ Automotive Switch, you can drop by (requires prior appointment) our store located at Novatel Communications, Main St, Buttevant, Co. Cork, P51 K066, Ireland.
To order online, simply click on the Add to Cart button, and then go through the fast, easy, and secure checkout process. Payment is provided for your convenience via Authipay Payment Gateway. You can use any supported cards (MasterCard, Visa, etc).
How Will My Order Be Delivered?
Your order(s) will be shipped via express delivery and are typically delivered within 1-4 business days. Your order will be dispatched directly from our warehouse and you will be provided a piece of tracking information for your order after it is dispatched. If you have any questions about your order status, please contact us.
Downloads
- Download Technical Specification (PDF)
- Quick Start Guide: EN (Web Page)
- User Manual: EN (Web Page)
