WEB400 LMR400-alternative High-Quality Coaxial Cable by Webro – Main

Name: WEB400 LMR400-alternative High-Quality Coaxial Cable by Webro – Main
Brand: Webro
SKU: WEB400
Price: 3.94 EUR
Availability: InStock

€4.88 Local IE Flat Rate Shipping (€6 w/ VAT)

Based on 0 reviews. - Write a review

€3.94

Ex Tax: €3.20

Stock: In Stock
Brand: Webro
Model: WEB400
MPN: WEB400

Available Options

Termination

Non-Terminated

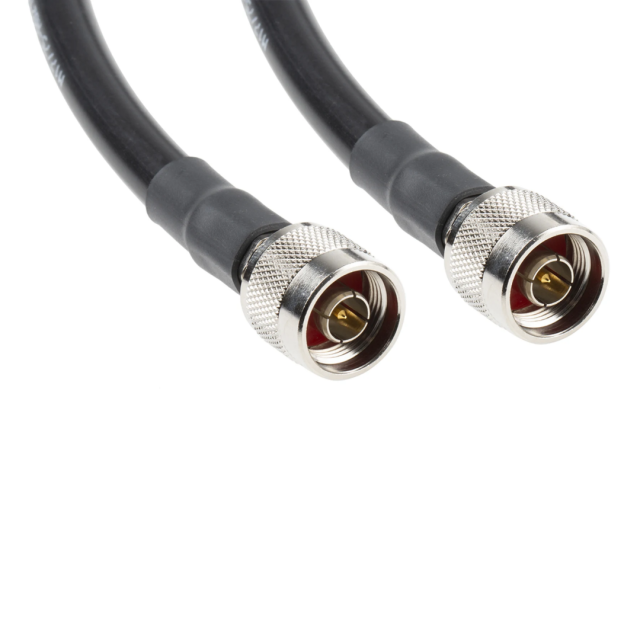

Terminated N-Male N-Male

Terminated N-Male N-Female

Cable Length

Qty

Add to Cart

Add to Wish List

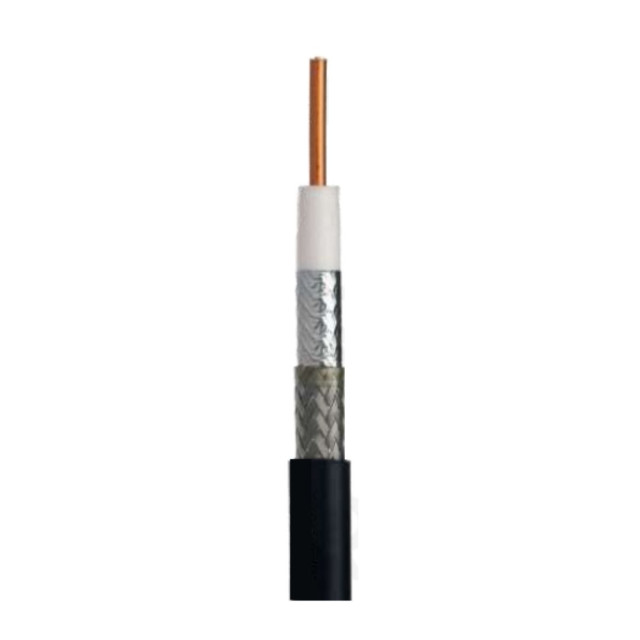

Webro WEB400 LMR-alternative cable, consists of a 2.74mm CCA conductor, foam polyethylene insulation, and bonded aluminum tape with tinned copper wire braid.

NOTE 1: Only N-Type connector will fit the WEB400 cable.

NOTE 2: With Termination - terminated either with N-Male or N-Female, you choose.

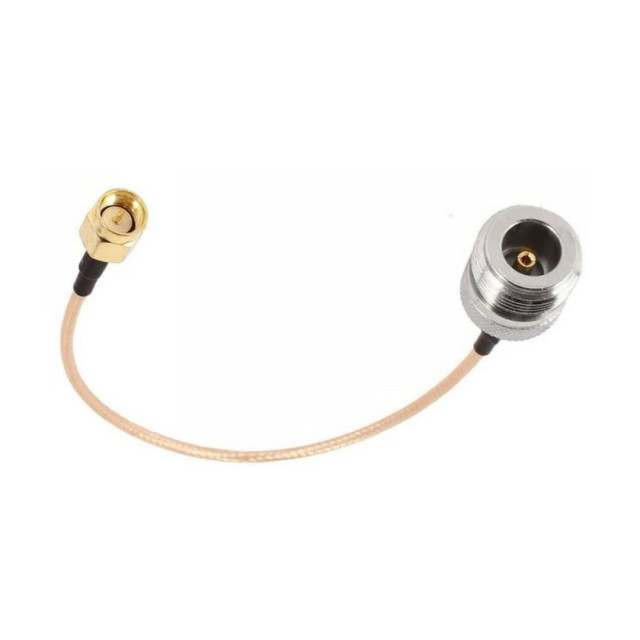

NOTE 3: WEB400 coax cable has to be terminated with N-Type connectors on both ends. If you need to reduce to SMA, then in addition, you will require a Pigtail Adapter N-SMA. For Stelladoradus Repeaters, when running a cable between the outdoor/indoor antenna and the StellaDoradus repeater, a pigtail adapter is needed every time.

Available Option

Available in black, in either (other materials and colours are available upon request):

PE
LSNH
~~DB (Direct Burial)~~

Connector Option

Choose between Custom and For Signal Repeater:

For Signal Repeater: You'll get a coax cable, professionally terminated with proper connectors for the StellaDoradus Repeater. Also includes the appropriate pigtail cable
Custom: Choose your connector, N-Type only

Application

WEB400 LMR coaxial cable is suitable for many applications, including signal repeater antenna cable run, jumper and pigtail assemblies and short antenna feeder runs in in telecommunication industries, as well as in multimedia applications.

Technical Specification

See below table for WEB400's technical specs.

Mechanical Characteristics
Inner Conductor	2.74mm Copper-Clad Aluminium
Dielectric	Foam Polyethylene Insulation
Screen	Bonded Aluminium Polyester Foil Tabe
Screen	Tinned Copper Wire Braid Coverage > 90%
Sheath	Black PE/DB/LSNH
Insulation Diameter	7.25mm (Nominal)
Sheath Diameter	10.10 + 0.30mm
Storage/Operating Temperature	-15°C to +70°C
Minimum Installation Temperature	-5°C
Standard Reel Lengths	100m, 250m, 500m, custom length (contact us)
Electrical Characteristics
DC Resistance Inner Conductor	≤4.6Ω/km @ 20°C
DC Resistance Outer Conductor	≤5.6Ω/km @ 20°C
Characteristic Impedance	50 ± 3Ohm
Capacitance	75pF/m (nominal)
Velocity Ratio	0.85
Attenuation (d/B 100m @ 20°C)	50MHz <3.2 150MHz <5.5 220MHz <6.7 460MHz <9.8 900MHz <14.1 1500MHz <18.5 1800MHz <20.5 2000MHz <21.5 2500MHz <24.4 5800MHz <35.5
Return Loss	5-470MHz >25 470-862MHz >24 862-2150MHz >23
