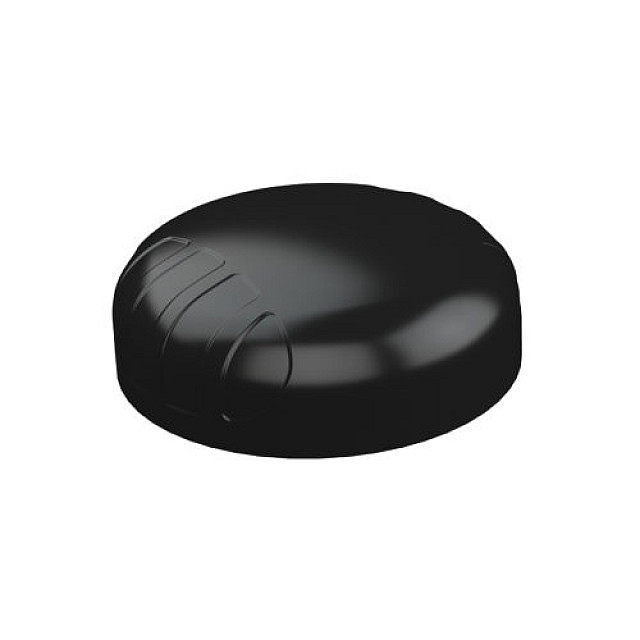

Poynting PUCK-1 Antenna
Available to Order
- Stock: 7-10 Days Delivery Lead Time
- Brand: Poynting
- Model: PUCK-1
- Weight: 0.44kg
- Dimensions: 15.00cm x 15.00cm x 12.00cm
- EAN: 6009880915262
- MPN: A-PUCK-0001-V1-01
It's a PUCK Style SISO LTE Transportation & IoT/Machine-to-Machine 5G-Ready Antenna with high-performance and multi-frequency features. It can support a wide array of frequency bands from 690 MHz to 3800 MHz, covering GSM-900, 3G, 4G/LTE and the future 5G network.
It's a low profile with compact design, versatile and it's very ideal for transportation, marine and IoT/M2M application. Very easy to install/mount, all thanks to its easy-to-apply mounting options.
Want to learn more? Read Technical Specifications.
Did I mention that its a WiFi antenna too?
Also a WiFi Antenna
The Poynting PUCK-1 is not just an LTE or GSM antenna, It can also be used as WiFi Antenna for Routers (uses SMA male), supporting the 2.4GHZ frequency band. It can be used outdoor, thanks to it's vandal and water resistant housing made of Polycarbonate + ABS material. It can be hookup to any WiFi router with single SMA female connector.
Note: Video is for reference only. Actual model in the video is a Poyntings PUCK-5 antenna, NOT the PUCK-1 (it doesn't have GPS capability).
NOTE: If looking for a WiFi Range Extenders, you can browse them all on this page.
Feature Summary
- High Performance Multi-frequency (4G/LTE, 3G, 2G, GSM, 5G)
- Wideband – covers wide frequency band, incl. the CBRS band
- Ground plane independent
- Robust, vandal resistant and water proof (IP68) antenna
- Ideal for vehicle application, Marine and IoT/M2M use
- Ultra-versatile mounting options for easy installation: Spigot Mount, Magnetic Mount, Adhesive Tape Mount, Bracket Mount
Sample Application
Here's are some applications where you can use the PUCk antenna:
- Smart Utilities: Smart Power, Gas & Water Metering
- Smart Buildings: Climate control, access control, security, irrigation
- Digital Signage
- Warehouses & Logistic systems
- Industrial factory automation, robotic machinery and other M2M systems
- Transport & Marine (Buses, Utility & Public Safety, Boats, Yachts near to coastlines or inner waters)
- Mining Vehicles & Machinery communications, telemetry and automation (M2M & IoT)
- Agricultural machinery
Antenna Overview
| Ports | 1 |
| MIMO | SISO |
| Frequency Bands | 690 MHz - 3800 MHz |
| Peak Gain | 6 dBi |
| Coax Cable Type | RTK-031 |
| Coax Cable Length | 2m |
| Connector Type | SMA Male |
Technical Specification
Find below table for Puck-1 or A-PUCK-0001-V1-01's technical specification.
| Electrical Specifications – Cellular | |
|---|---|
| Frequency Bands |
690-960 MHz 1710-2700 MHz 3200-3800 MHz |
| Gain (max) | 6 dBi |
| VSWR | ≤2.5:1 over 85% of the band |
| Input impedance | 50 Ohm (nominal) |
| Polarisation | Linear Vertical |
| Coax Cable Loss |
0.45 dB/m @ 900 MHz 0.71 dB/m @ 2000 MHz 0.79 dB/m @ 2500 MHz 0.9 dB/m @ 3000 MHz |
| DC Short | Yes |
| Coax Cable & Connector Type – Cellular | |
| Cable Length | 2m ±5% |
| Coax Cable Type | RTK-031 |
| Connector Type |
SMA (Male) (NOTE: The coax cables & connectors are factory mounted to the antenna) |
| Mechanical Specifications | |
| Product Dimensions | Ø99.3 mm x 36 mm |
| Packaged Dimensions | 150 mm x 150mm x 120mm |
| Weight | 0.312kg |
| Packaged Weight | 0.443kg |
| Radome Material | PC+ABS (Halogen Free) |
| Radome Colour | Pantone Black |
| Mounting Type | Ø20 Threaded Spigot, Pole, Wall, Surface and Magnetic mount |
| Environmental Specifications, Certification & Approvals | |
| Wind Survival | <220 km/h |
| Temperature Range (Operating) | -40°C to +80°C |
| Environmental Conditions | Outdoor/Indoor |
| Water Ingress Protection Ratio/Standard | IP68 – 30 minutes up to 1.5m |
| Salt Spray | MIL-STD 810F/ASTM B117 |
| Operating Relative Humidity | Up to 98% |
| Storage Humidity | 5% to 95% - non-condensing |
| Storage Temperature | -40°C to +80°C |
| Enclosure Flammability Rating | UL 94-HB, ECE-R118.02 Certified Cables |
| Impact Resistance | IK 10 |
| Product Safety & Environmental | Complies with CE and RoHS Standards |
Downloads
- Download Tech Spec (PDF)
Product Box Contents
The Poynting PUCK-1 Antenna Box Contains the Following:
- Antenna: A-PUCK-0001-V1-01
- Mounting Bracket: Ø20 Threaded Spigots (Up to 60mm clamping thickness), Adhesive Surface
- Mounting & Magnetic Mount
Ordering Information
- Commercial Name: PUCK-1
- Order Product Code: A-PUCK-0001-V1-01
- EAN number: 6009880915262
How and Where to Buy
You can order the Poynting PUCK-1 2G/3G/4G/5G Antenna online using Add to Cart button. Then go through checkout page and process your order. You can pay securely using your Credit Card via our secure page. Your payment shall be handled via Stripe Payment Gateway.
You could also drop by and buy from our physical store located Novatel Communications, 12 Main Street, Buttevant, Co. Cork P51 K066.
How Will My Order Be Delivered?
Your order(s) will be shipped via express delivery and are normally delivered within 1-4 business days. Your order will be dispatched directly from our warehouse and you will be provided a tracking information for your order, after it is dispatched. If you have any questions on your order status, please contact us.
Technical Images
Technical Drawings
Antenna Performance Plots
Voltage Standing Wave Ratio (VSWR)*
VSWR is a measure of how efficiently radio-frequency power is transmitted from a power source, through a transmission line, into a load. In an ideal system, 100% of the energy is transmitted which corresponds to a VSWR of 1:1.
The PUCK-1 delivers superior performance across all bands with a VSWR of ≤2.5:1 over 85% of the band.
*Measured with 2m low loss cable
Gain in dBi
6 dBi is the peak gain across all bands from 690-960, 1710-2700 & 3400-3800 MHz.
Peak Gain @ different bands: -1 dBi @690-960MHz Peak Gain @ different bands: 6.0 dBi @ 1710-2700MHz Peak Gain @ different bands: 6.0 dBi @3400-3800MHz
Mounting Options
The PUCK-1 Has Several Mounting Possibilities (included as standard), along with the PUCk-series antenna. All provides easy-install feature with multiple mounting options.
This includes as standard:
- Spigot Mount - two different lengths included (40mm & 80mm)
- Vertical Pole mount (inner & outer mounting for smaller and larger poles)
- Horizontal Pole Mount (e.g. marine rails)
- Magnetic Mount
- Surface Mount (Double Sided Tape)
- Wall Mount
